OD200 Laser Distance Sensors
OD200
More productivity through simple and reliable distance measurement
The compact OD200 displacement sensor delivers precise micrometer-range distance measurements—even on challenging surfaces like structured composites or shiny metals—without the need for a separate amplifier. Its compact housing, wide measuring range, and intelligent signal processing make it ideal for tight spaces and tough environments. Designed for flexibility across various applications, the OD200 is easy to integrate and configure thanks to its plug-and-play setup and smart factory settings, making it a powerful, stand-alone solution for boosting productivity.
Benefits
Consistent high-quality measurements – regardless of the target
Reliable measurement on structured, deep black and glossy surfaces thanks to a high-performance optical system and improved signal processing
High measurement frequency designed for applications needing speed
Smart factory settings and intuitive interfaces allow for easy configuration and integration
Particularly economical to use thanks to high performance and comparatively low acquisition costs
Reliable performance in challenging ambient lighting
Fast IO-Link integration with SOPAS software
Features
Repeatability: 2 µm ... 20 µm
Linearity: ± 10 µm ... 100 µm
Measuring frequency: up to 3 kHz

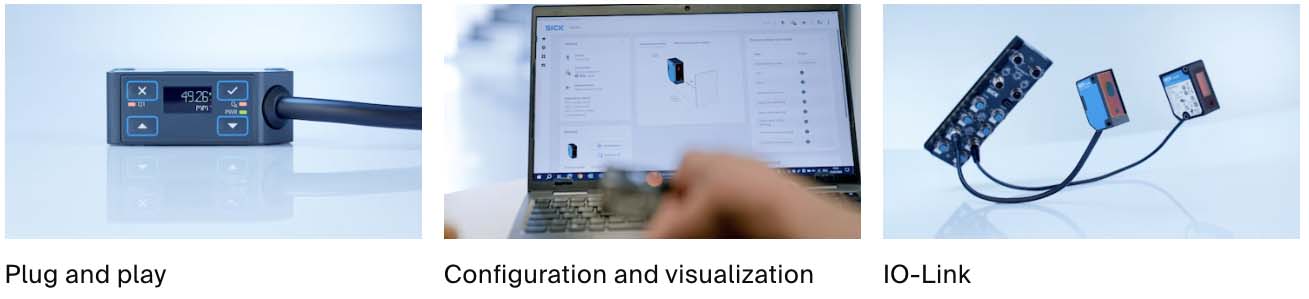

Intuitive configuration via OLED display, IO-Link and SOPAS ET
Measuring ranges from 25 mm to 160 mm
Laser class 1
Analogue and digital output with IO-Link interface
Robust miniature housing
ADVANTAGES
For the challenges of today and tomorrow

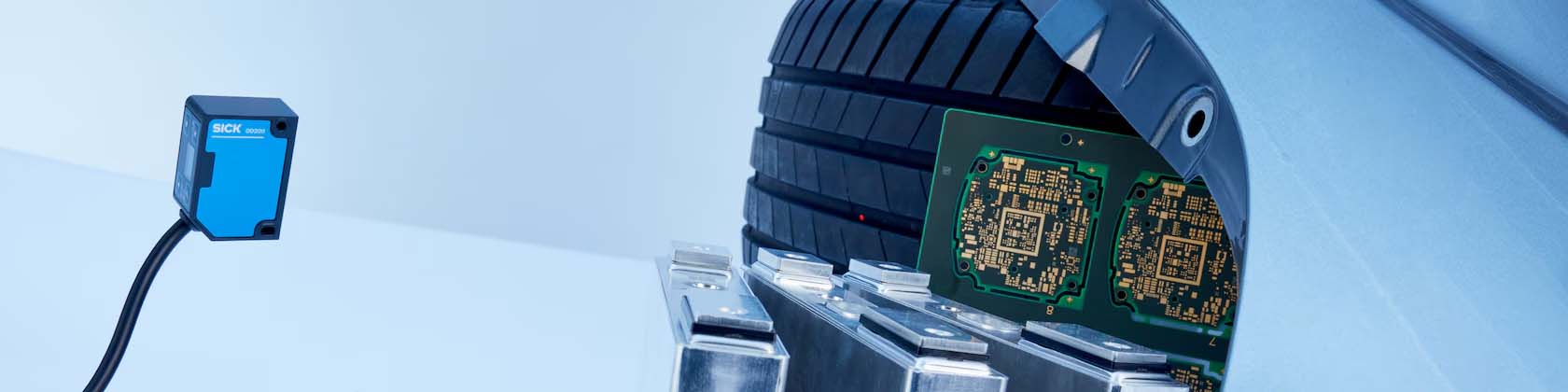

New materials and future technologies such as battery production or the semiconductor industry are increasing the requirements for error-free distance measurement. Complex surfaces can significantly increase the error rate. The solution: the OD200. The sensor keeps waste to a minimum with its surface-independent measurement quality – for sustainable and efficient production that is ready for the future.

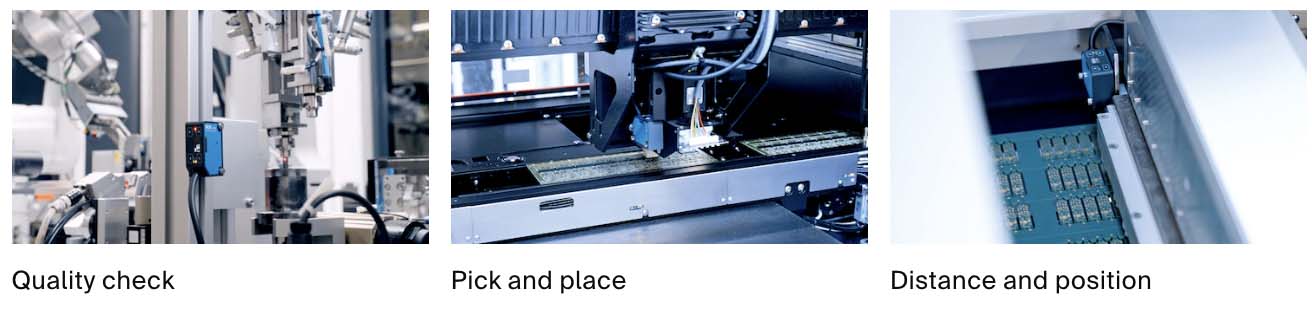

The compact housing and the material-independent measurement quality make the sensor a suitable solution for many different applications.
Stable performance for more productivity

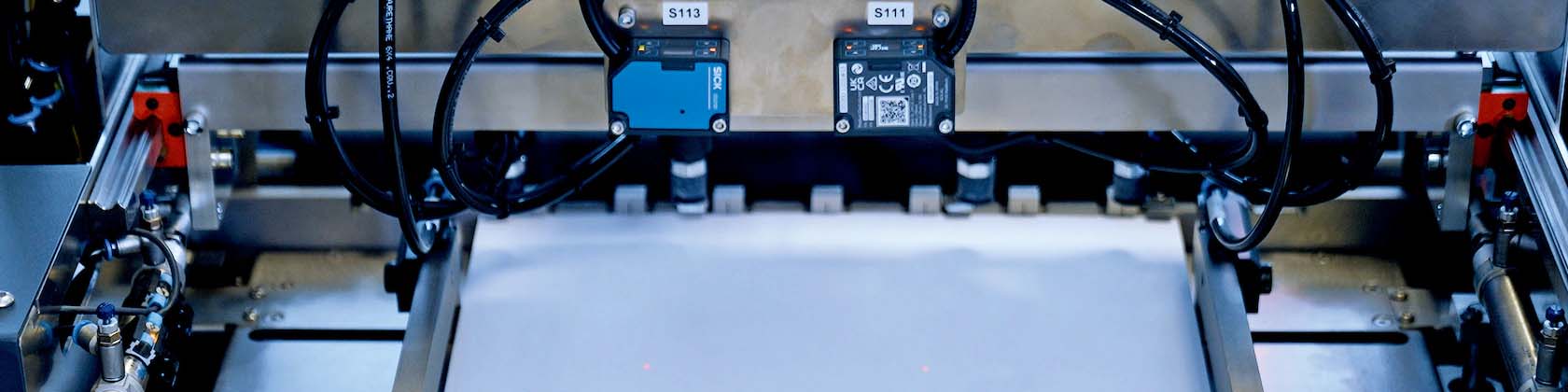

Reliable measurement data for demanding surfaces: The OD200 delivers consistently high measurement quality – even with highly reflective objects or complex structured surfaces. Automated applications continuously receive precise data. The result: high availability and increased throughput, while the sensor effectively prevents costly system downtimes.
The high stability of the measured values ensures a reliable data basis and thus forms the basis for optimizing the productivity of the systems.
Quickly integrated. Easy to operate

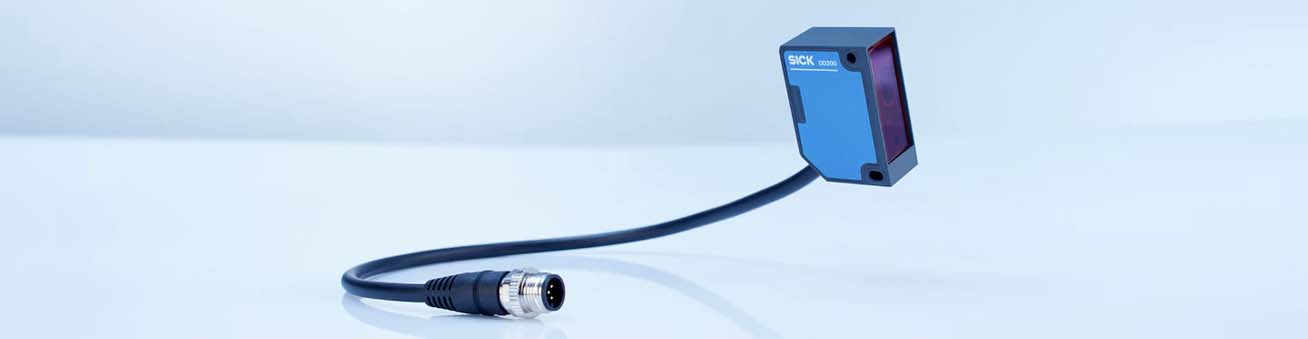

High performance in miniature format: The OD200 is suitable for tight installation spaces. Thanks to standard components and common interfaces, the sensor can be easily integrated into new and existing systems. The precise OLED display, tactile buttons and intuitive menu navigation ensure that the sensor is easy to adjust.
